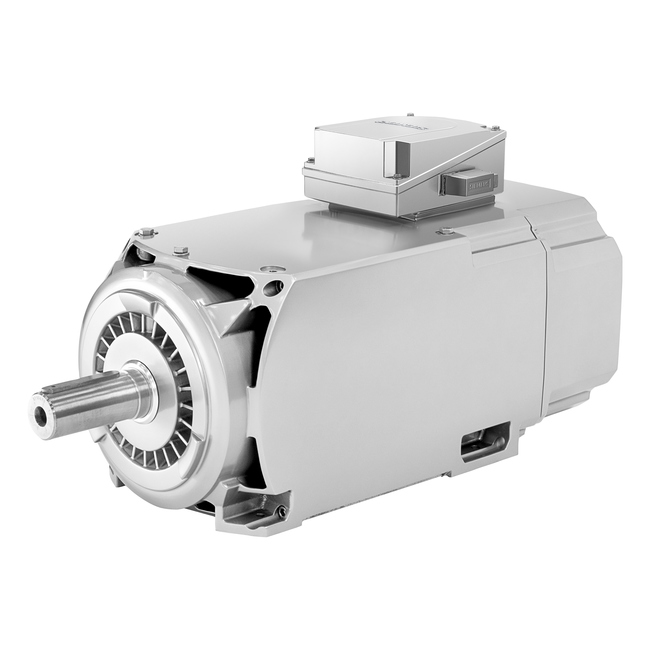

1PH8184-1DD00-0BC1 SIEMENS ⍾ 1PH81841DD000BC1
SIMOTICS M compact asynchronous motor 1000 r/min, 39 kW, 372 Nm, 87 A, 340 V 1150 r/min, 44 kW, 365 Nm, 86 A, 390 V 1350 r/min, 50 kW, 354 Nm, 84 A, 450 V forced ventilation direction of air flow DE-->NDE IP55 degree of protection Incremental encoder 22-bit with commutation position (encoder IC22DQ) with DRIVE-CLiQ interface DESIGN IM B3 (IMB6, IMB7, IMB8, IMV6) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD VIBRATION SEVERITY GRADE R/A; SHAFT A.FLANGE ACCURACY GR. R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION RIGHT
 |
SIEMENS 1PH8184-1DD00-0BC1 Datasheet PDF (en) Size: 103 KB |
Download |
