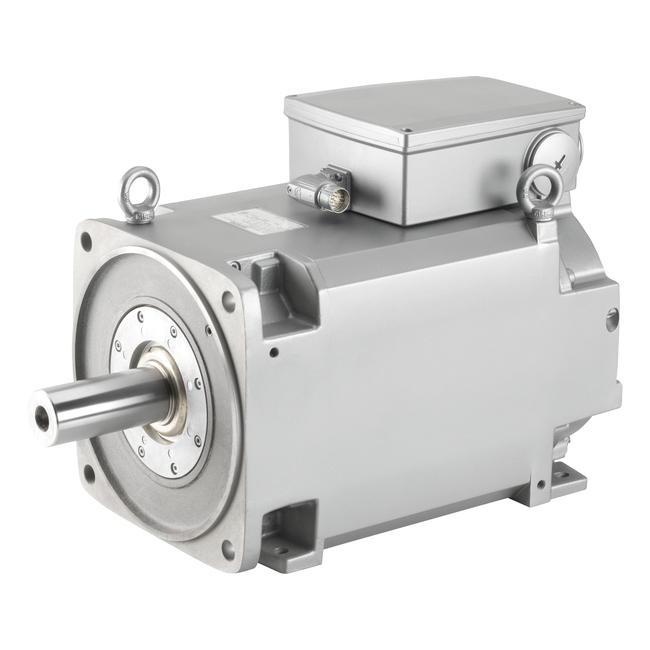

1PH8165-1MF23-2LC2 SIEMENS ⍾ 1PH81651MF232LC2
SIMOTICS M compact asynchronous motor 1500 r/min 46 kW 293 Nm 104 A 330 V 1750 r/min 53 kW 289 Nm 104 A 374 V 2000 r/min 60 kW 287 Nm 103 A 426 V 2200 r/min 66 kW 287 Nm 103 A 457 V water cooling degree of protection IP65 Incremental encoder SIN/COS 1 VPP 2048 S/R with C and D track (encoder IC2048S/R) with temperature sensor Pt1000 Design IM B35 (IM V15, (IM V35) SHAFT WITH FITTED KEY HALF-KEY BALANCING BEARING: PERFORMANCE, VIBRATION SEVERITY GRADE SPECIAL/B; SHAFT A. FLANGE ACCURACY GR. SPECIAL TERMINAL BOX (ABOVE) CABLE ENTRY ON THE ND-END SIGNAL CONNECTION LEFT
 |
SIEMENS 1PH8165-1MF23-2LC2 Datasheet PDF (en) Size: 122 KB |
Download |
