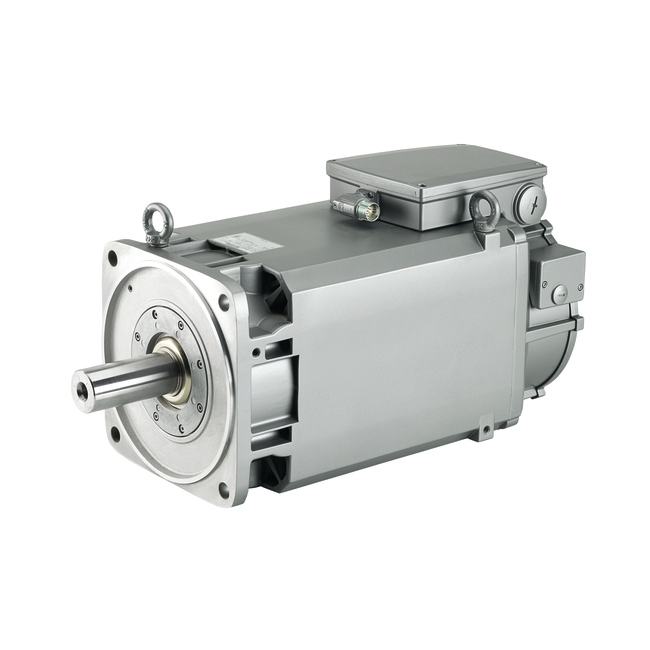

1PH8107-1DD02-0BA1 SIEMENS ⍾ 1PH81071DD020BA1
SIMOTICS M COMPACT ASYNCHRONOUS MOTOR 1000RPM, 6,3KW,60NM,17,5A, 307V 1150RPM, 7,2KW,60NM,17,5A, 348V 1350RPM, 8,0KW, 57NM, 17A, 400V FORCED VENTILATION; DIRECTION OF AIR FLOW DE --> NDE; DEGREE OF PROTECTION IP55 INCREMENTAL ENCODER 22 BIT WITH COMMUTATING POSITION (ENCODER IC22DQ) WITH DRIVE-CLIQ INTERFACE DESIGN IM B5 (IMV 1,IM V3) PLAIN SHAFT WITHOUT FITTED KEY; BEARING: STANDARD WITH FIXED BEARING, VIBRATION SEVERITY GRADE: R/A, SHAFT AND FLANGE ACCURACY: R TERMINAL BOX (ABOVE) CABLE ENTRY ON THE RIGHT SIGNAL CONNECTION D-END
 |
SIEMENS 1PH8107-1DD02-0BA1 Datasheet PDF (en) Size: 109 KB |
Download |
Related in 1ph8107 / 1PH8 SH080-160 ASM ⍾ Page 1
-
1PH8107-1AD00-0BA2
SIMOTICS M compact asynchronous motor 1000 rpm 6.3 kW 60 Nm 17.5 A 307 V 1150 rpm 7.2 kW 60 Nm 17.5 A 348 V 1350 rpm 8 kW 57 Nm 17 A 400 V 1500 rpm 8.8 kW 56 Nm 17 A 440 V forced v …
-
1PH8107-1AD12-2GA2
SIMOTICS M compact asynchronous motor 1000 rpm 6.3 kW 60 Nm 17.5 A 307 V 1150 rpm 7.2 kW 60 Nm 17.5 A 348 V 1350 rpm 8 kW 57 Nm 17 A 400 V 1500 rpm 8.8 kW 56 Nm 17 A 440 V forced v …
-
1PH8107-1AF23-1BA2
SIMOTICS M compact asynchronous motor 1500 r/min 14 kW 89 Nm 43.7 A 277 V 1750 r/min 15.5 kW 85 Nm 42 A 314 V 2000 r/min 18 kW 86 Nm 42.6 A 363 V 2200 r/min 19.8 kW 86 Nm 42.6 A 38 …
-
1PH8107-1AG02-0BA1
SIMOTICS M Compact induction motor 2000rpm, 10.5kW 50Nm, 26 A, 355V 2300rpm, 12kW 50Nm, 26 A, 406V 2650rpm, 13kW 47Nm, 24A, 460 V forced ventilation; direction of air flow DE--> ND …
-
1PH8107-1CM00-1LC2
SIMOTICS M compact asynchronous motor 3000 rpm 12 kW 38 Nm 38 A 294 V 3300 rpm 13 kW 38 Nm 38 A 314 V 3600 rpm 14 kW 37 Nm 37.5 A 350 V 3900 rpm 14 kW 34 Nm 35 A 380 V forced venti …
-
1PH8107-1CM02-3MA1
SIMOTICS M Compact induction motor 3000rpm, 12kW 38Nm, 38A, 294V 3300RPM, 13kW 38Nm, 38A, 326V 3600RPM 14kW 37Nm, 37.5A, 355V forced ventilation; direction of air flow DE--> NDE; D …
-
1PH8107-1CM22-3LC1
SIMOTICS M compact asynchronous motor 3000 rpm 18 kW 57 Nm 60 A 264 V 3300 rpm 20 kW 58 Nm 60 A 290 V 3600 rpm 21 kW 56 Nm 59 A 315 V 3900 rpm 21.6 kW 53 Nm 58 A 329 V water coolin …
-
1PH8107-1DD00-2GA1
SIMOTICS M Compact induction motor 1000rpm, 6.3kW 60Nm, 17.5A, 307V 1150rpm, 7.2kW 60Nm, 17.5A, 348V 1350rpm, 8.0kW 57Nm, 17A, 400 V forced ventilation; direction of air flow DE--> …
-
1PH8107-1DD02-0CE1
SIMOTICS M compact asynchronous motor 1000 r/min 6.3 kW 60 Nm 17.5 A 307 V 1150 r/min 7.2 kW 60 Nm 17.5 A 348 V 1350 r/min 8 kW 57 Nm 17 A 400 V 1500 r/min 8.8 kW 56 Nm 17 A 440 V …
-
1PH8107-1DD02-2GA1
SIMOTICS M Compact induction motor 1000rpm, 6.3kW 60Nm, 17.5A, 307V 1150rpm, 7.2kW 60Nm, 17.5A, 348V 1350rpm, 8.0kW 57Nm, 17A, 400 V forced ventilation; direction of air flow DE--> …
-
1PH8107-1DD03-2BA1
SIMOTICS M compact asynchronous motor 1000 rpm 6.3 kW 60 Nm 17.5 A 307 V 1150 rpm 7.2 kW 60 Nm 17.5 A 348 V 1350 rpm 8 kW 57 Nm 17 A 400 V 1500 rpm 8.8 kW 56 Nm 17 A 440 V forced v …
-
1PH8107-1DD10-1GA1
SIMOTICS M compact asynchronous motor 1000 rpm 6.3 kW 60 Nm 17.5 A 307 V 1150 rpm 7.2 kW 60 Nm 17.5 A 348 V 1350 rpm 8 kW 57 Nm 17 A 400 V 1500 rpm 8.8 kW 56 Nm 17 A 440 V forced v …
