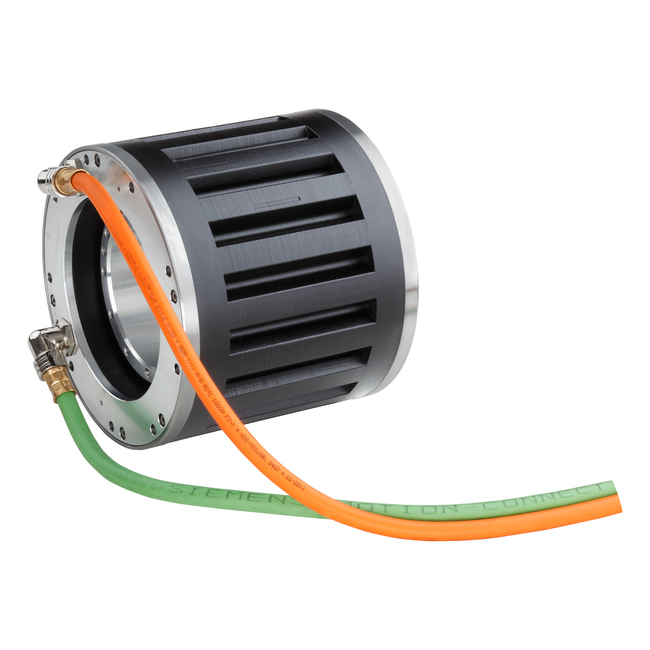

1FW6053-0KB15-1JD1 SIEMENS ⍾ 1FW60530KB151JD1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET POWER CABLE 0.5M WITH PLUG SIZE 1; SIGNAL CABLE 0.5M WITH PLUG SIZE M17; DIAM 159MM; LENGTH 209MM; MAX TORQUE 174NM; MAX ROT SPEED 1100RPM; MAX CURRENT 29ARMS; WHEN USING THE DIRECT MOTORS ON FORK HEADS FOR MACHINE TOOLS OR ROBOTS A LICENSE FOR US PATENT US5584621 AND THE CORRESPONDING WORLDWIDE PATENTS MAY BE REQUIRED
Related in 1fw6053 / SIMOTICS T ⍾ Page 1
-
1FW6053-0KB03-0FC1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET; WITH OPEN CABLE ENDS 2M; DIAM 159MM; LENGTH 89MM; MAX TORQUE 34,4NM; MAX ROT SPEED 1200RPM; MAX CU …
-
1FW6053-0KB03-0FC3
SIMOTICS T torque motor; components 3-phase synchronous motor; axial cable outlet; Bare cable ends 2 m; Diameter 159mm; Length 89mm Max. torque 34.4 Nm; max. speed 1200rpm; max. cu …
-
1FW6053-0KB03-0FD1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET POWER CABLE 0.5M WITH PLUG SIZE 1; SIGNAL CABLE 0.5M WITH PLUG SIZE M17; DIAM 159MM; LENGTH 89MM; M …
-
1FW6053-0KB05-0FC1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET; WITH OPEN CABLE ENDS 2M; DIAM 159MM; LENGTH 109MM; MAX TORQUE 57,5NM; MAX ROT SPEED 720RPM; MAX CU …
-
1FW6053-0KB05-0FC3
SIMOTICS T torque motor; components 3-phase synchronous motor; axial cable outlet; Bare cable ends 2 m; Diameter 159mm; length 109mm Max. torque 57.5 Nm; max. speed 720rpm; max. cu …
-
1FW6053-0KB05-0FD1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET POWER CABLE 0.5M WITH PLUG SIZE 1; SIGNAL CABLE 0.5M WITH PLUG SIZE M17; DIAM 159MM; LENGTH 109MM; …
-
1FW6053-0KB07-0KC1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET WITH OPEN CABLE ENDS 2M; DIAM 159MM; LENGTH 129MM; MAX TORQUE 81,2NM; MAX ROT SPEED 880RPM; MAX CUR …
-
1FW6053-0KB07-0KD1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET POWER CABLE 0.5M WITH PLUG SIZE 1; SIGNAL CABLE 0.5M WITH PLUG SIZE M17; DIAM 159MM; LENGTH 129MM; …
-
1FW6053-0KB10-0KC1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET WITH OPEN CABLE ENDS 2M; DIAM 159MM; LENGTH 159MM; MAX TORQUE 116NM; MAX ROT SPEED 770RPM; MAX CURR …
-
1FW6053-0KB10-0KD1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET POWER CABLE 0.5M WITH PLUG SIZE 1; SIGNAL CABLE 0.5M WITH PLUG SIZE M17; DIAM 159MM; LENGTH 159MM; …
-
1FW6053-0KB15-1JC1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; AXIAL CABLE OUTLET WITH OPEN CABLE ENDS 2M; DIAM 159MM; LENGTH 209MM; MAX TORQUE 174NM; MAX ROT SPEED 1100RPM; MAX CUR …
-
1FW6053-0LB03-0FC1
SIMOTICS T TORQUE MOTOR; COMPONENT 3-PHASE SYNCHRONOUS MOTOR; TANGENTIAL CABLE OUTLET WITH OPEN CABLE ENDS 2M; DIAM 159MM; LENGTH 89MM; MAX TORQUE 34,4NM; MAX ROT SPEED 1200RPM; MA …
