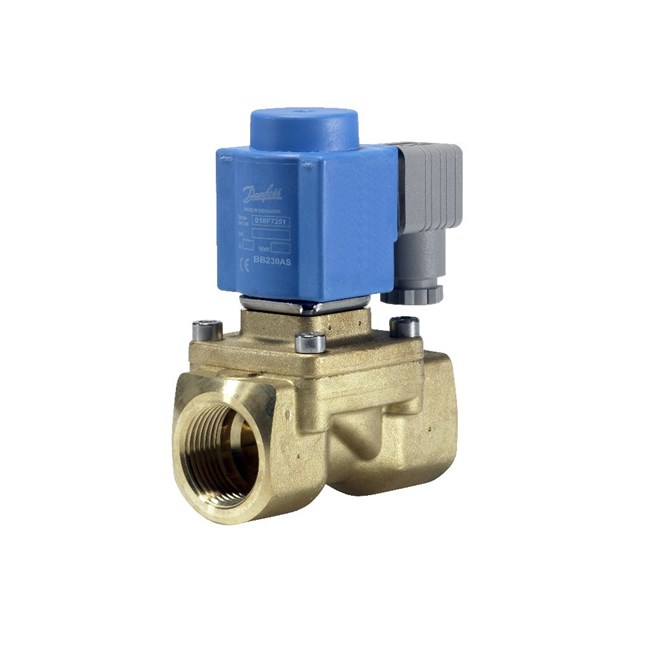

Danfoss 032U162431

032U162431 Danfoss

Type Code: EV250B; Weight: 1.32 Kg; Actuator size: 13.5 mm; Actuator size: 0.53 in; Ambient temp. max.: 80 °C; Ambient temp. max.: 176 °F; Body mat.: DZR brass; Coil: BB 230 V a.c. 50 Hz; Coil option: Clip-on; Coil type: BB; Connection: G 1; Conn. Int./Ext.: Internal; Conn. std.: ISO 228-1; Cv value: 8,100 gpm US; Diff. pressure: 0 - 10 bar; Diff. pressure: 0,0 - 145,0 psi; EAN no.: 5702423186938; Electr. conn.: Spade DIN 43650-A; Enclosure rating: IP65; Freq.: 50 HZ; Function: N C; Kv value: 7,000 m3/h; Max. Working Pressure: 10,0 bar; Max. Working Pressure: 145 psig; Medium temp. range: -30 - 140 °C; Medium temp. range: -22 - 284 °F; Number of ways: 2/2; Operation: Assisted lift operated; Orifice size: 22,00 mm; Orifice size: 7/8 in; Pack format: Multi pack; Power consumption 50 Hz: 11,0 W; Prod. group: Solenoid valves; Prod. name: Solenoid valve; Pack qty.: 12 PC; Seal mat.: EPDM; Supply volt.: 230 V; Supply voltage 50Hz Max: 230 V; Type designation: Solenoid valve.
