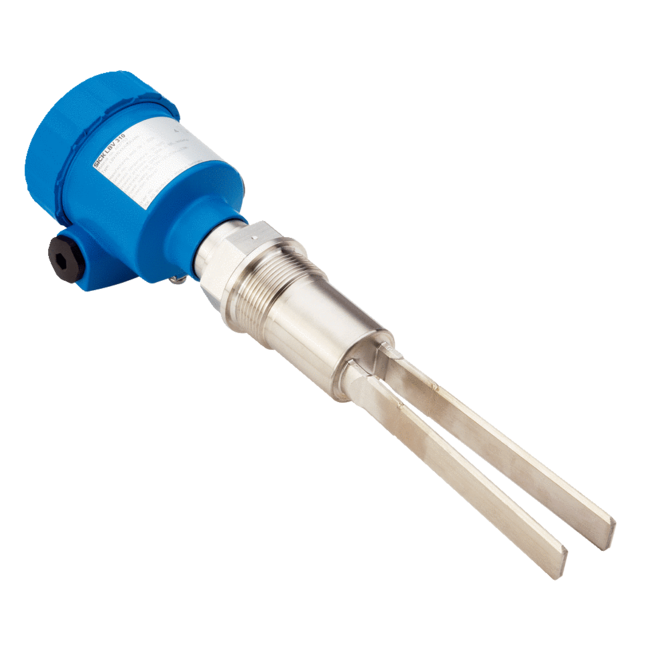

SICK LBV310-CXAEFNVMX

LBV310-CXAEFNVMX SICK ⍾ 6071106 ⍾ LBV310CXAEFNVMX

Features: Medium: Bulk solids; Measurement: Switch; Probe length: 220 mm; Process pressure: –1 bar ... 25 bar; Process temperature: –50 °C ... +150 °C; Fill material density: ≥ 0.008; Particle size: < 10 mm; ATEX approval: ATEX II 1G, 1/2G, 2G Ex ia IIC T6 Ga, Ga/Gb, Gb; Type examination: PTB 17 ATEX 2017 X; Performance: Accuracy of sensor element: ± 10 mm; Reproducibility: ≤ 5 mm; Response time: 500 ms when covered / 1,000 ms when uncovered; Electronics: Power consumption: 1 mA / 2,5 mA; Initialization time: < 2 s; VDE protection class 2: ✔; Connection type: M20 x 1.5; Output signal: NAMUR signal; Supply voltage: NAMUR signal: 4.5 V DC ... 12 V DC; Hysteresis: 10 mm; Output current: 1 mA / 2,5 mA; Enclosure rating: IP66 / IP67; Mechanics: Process connection: Flange DN 50 PN 40 form C, DIN 2501 / 316L; Housing material: Stainless steel (investment casting) 316L; Sensor material: Stainless steel 1.4404; Ambient data: Ambient operating temperature: –40 °C ... +80 °C; Ambient storage temperature: –40 °C ... +80 °C; Classifications: ECl@ss 5.0: 27273202; ECl@ss 5.1.4: 27273202; ECl@ss 6.0: 27273202; ECl@ss 6.2: 27273202; ECl@ss 7.0: 27273202; ECl@ss 8.0: 27273202; ECl@ss 8.1: 27273202; ECl@ss 9.0: 27273202; ECl@ss 10.0: 27273202; ECl@ss 11.0: 27273202; ETIM 5.0: EC002654; ETIM 6.0: EC002654; ETIM 7.0: EC002654; UNSPSC 16.0901: 41111938
