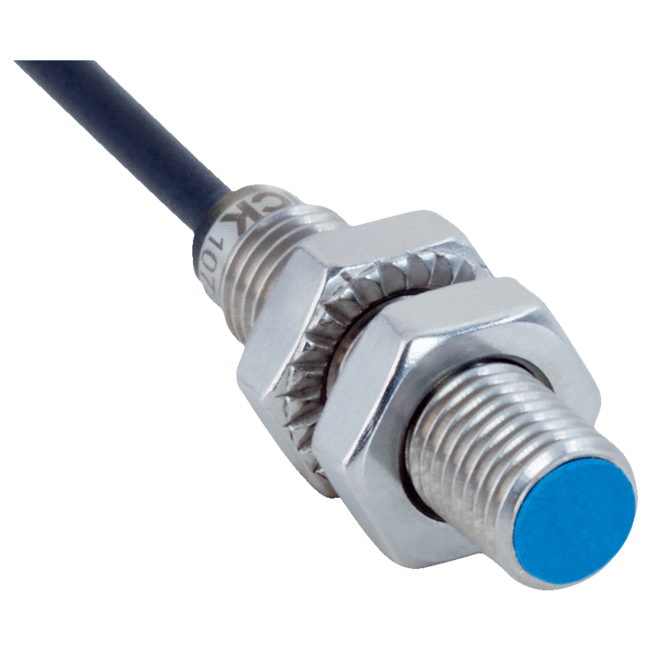

SICK IMB08-02BDSVU5K

IMB08-02BDSVU5K SICK ⍾ 1082062 ⍾ IMB0802BDSVU5K

Features: Housing: Cylindrical thread design; Housing: Short-body; Thread size: M8 x 1; Diameter: Ø 8 mm; Sensing range Sn: 2 mm; Safe sensing range Sa: 1.62 mm; Installation type: Flush; Switching frequency: 4,000 Hz; Connection type: Cable, 2-wire, 5 m; Output function: NO; Electrical wiring: DC 2-wire; Enclosure rating: IP68 1)IP69K 2); Special features: Resistant against coolant lubricants, Visual adjustment indicator; Special applications: Zones with coolants and lubricants, Mobile machines, Difficult application conditions; Mechanics/electronics: Supply voltage: 10 V DC ... 30 V DC; Ripple: ≤ 10 %; Voltage drop: ≤ 4 V 1)≤ 4.5 V 2); Time delay before availability: ≤ 100 ms; Hysteresis: 3 % ... 20 %; Reproducibility: ≤ 2 % 3) 4); Temperature drift (of Sr): ± 10 %; EMC: According to EN 60947-5-2; Continuous current Ia: ≤ 100 mA; Off-state current: Typ. 0.8 mA (≤ 1.2 mA at Ub max and 100 ° C); Minimum load current: ≥ 3 mA; Cable material: PUR; Short-circuit protection: ✔; Reverse polarity protection: ✔; Power-up pulse: ≤ 5 ms; Shock and vibration resistance: 100 g / 11 ms / 1000 cycles; 150 g / 1 Mio cycles; 10 Hz ... 55 Hz, 1 mm / 55 Hz ... 500 Hz / 15 g; Ambient operating temperature: –40 °C ... +100 °C; Housing material: Stainless steel V2A, DIN 1.4305 / AISI 303; Sensing face material: Plastic, LCP; Housing length: 32 mm; Thread length: 28 mm; Tightening torque, max.: Typ. 14 Nm 5); Items supplied: Mounting nut, V2A stainless steel, with locking teeth (2x); UL File No.: E181493; Reduction factors: Note: The values are reference values which may vary; St37 steel (Fe): 1; Stainless steel (V2A, 304): Approx. 0.74; Aluminum (Al): Approx. 0.43; Copper (Cu): Approx. 0.33; Brass (Br): Approx. 0.46; Installation note: Remark: Associated graphic see "Installation"; B: 6.5 mm; C: 8 mm; D: 6 mm; F: 16 mm; Classifications: ECl@ss 5.0: 27270101; ECl@ss 5.1.4: 27270101; ECl@ss 6.0: 27270101; ECl@ss 6.2: 27270101; ECl@ss 7.0: 27270101; ECl@ss 8.0: 27270101; ECl@ss 8.1: 27270101; ECl@ss 9.0: 27270101; ECl@ss 10.0: 27270101; ECl@ss 11.0: 27270101; ETIM 5.0: EC002714; ETIM 6.0: EC002714; ETIM 7.0: EC002714; UNSPSC 16.0901: 39122230
