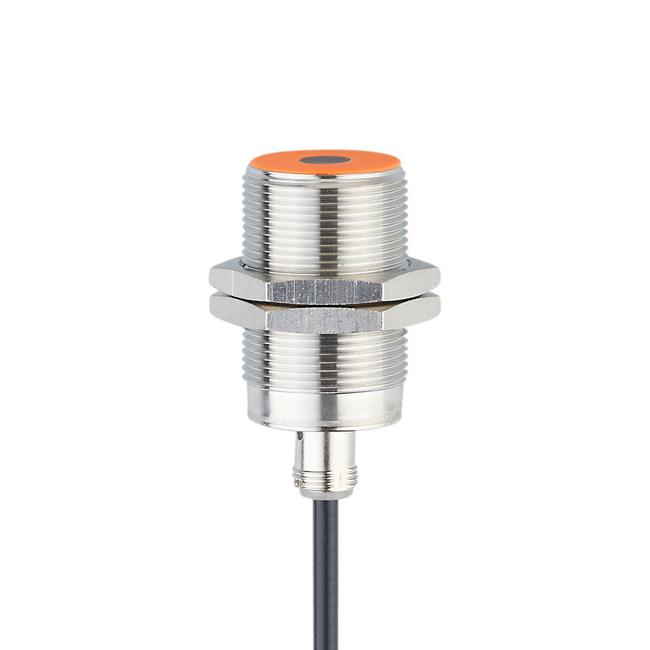

II7106 ifm ⍾ IIK3010-ANKG/I/2M

Inductive sensor; Operating voltage [V] : 15...30 DC; Protection class : III; Reverse polarity protection : yes; Electrical design : NPN; Output function : normally open; Max. voltage drop switching output DC [V] : 2.5; Permanent current rating of switching output DC [mA] : 100; Switching frequency DC [Hz] : 200; Short-circuit protection : yes; Type of short-circuit protection : pulsed; Overload protection : yes; Sensing range [mm] : 10; Real sensing range Sr [mm] : 10 ± 10 %; Operating distance [mm] : 0...8.1; Correction factor : steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminium: 0.4 / copper: 0.3; Hysteresis [% of Sr] : 1...20; Switch point drift [% of Sr] : -10...10; Ambient temperature [°C] : -25...70; Housing : threaded type; Mounting : flush mountable; Thread designation : M30 x 1.5; Materials : housing: brass nickel-plated; sensing face: PBT; lock nuts: brass; Items supplied : lock nuts: 2

Connection: Cable: 2 m, PVC, Ø 4.9 mm; 3 x 0.34 mm²
No. of inputs/outputs: Number of analogue outputs: 1
Current consumption: < 15 mA
Voltage supply: 24 V
Display: switching status: 1 x LED, yellow
Degree of protection: IP 67
Weight: 178.7 g
Dimensions: M30 x 1.5 / L = 61 mm
