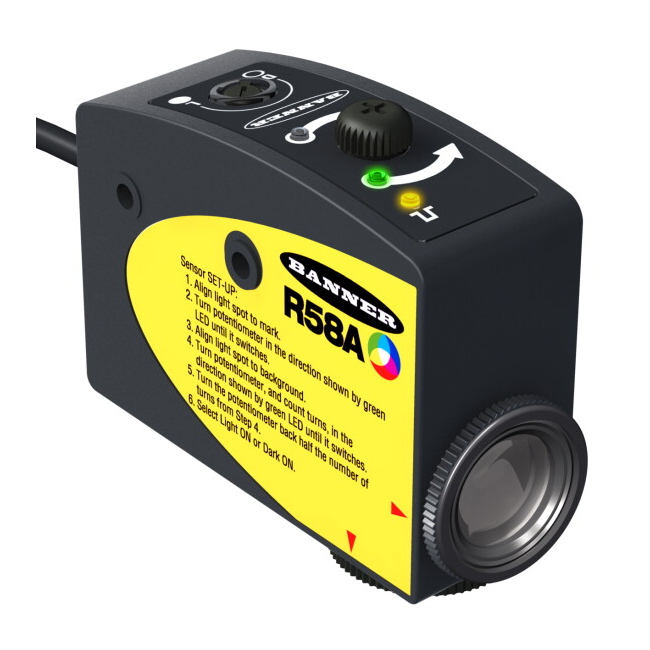

R58ACG2Q8 BANNER ⍾ 10224
R58 Series Registration Mark Sensor; R58A Register Mark Sensor Input; 10-30 V dc Output: Bipolar; 1 NPN; 1 PNPGreen Perpendicular Sensing Beam Euro 5-pin Integral QD; Primary Housing Material : Zinc Alloy Die-Cast; Adjustments : Potentiometer; Outputs : Bipolar (NPN & PNP); Quick Disconnect Type : M12 (Euro); Sensing Beam Wavelength : 525; Max Sensing Range (mm) : 10; Number of Pins : 4; LED Orientation : Perpendicular to sensor length; Operation : Light/Dark Operate; Output response time (ms) : 0.05; Repeatability (µs) : 15; Max Op. Temperature (°C) : 50; Min Op. Temperature (°C) : -10; Max Op. Relative Humidity (%) : 90% @ 50°C; Beam Spot Size : 1.2 x 3.8 mm at 10 mm; Feature: Quick Disconnect : Yes; Application: Registration Mark : Yes
- Lens material
- Acrylic
- Connection
- Integral QD
- Typical response time
- 100 ms
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
 |
