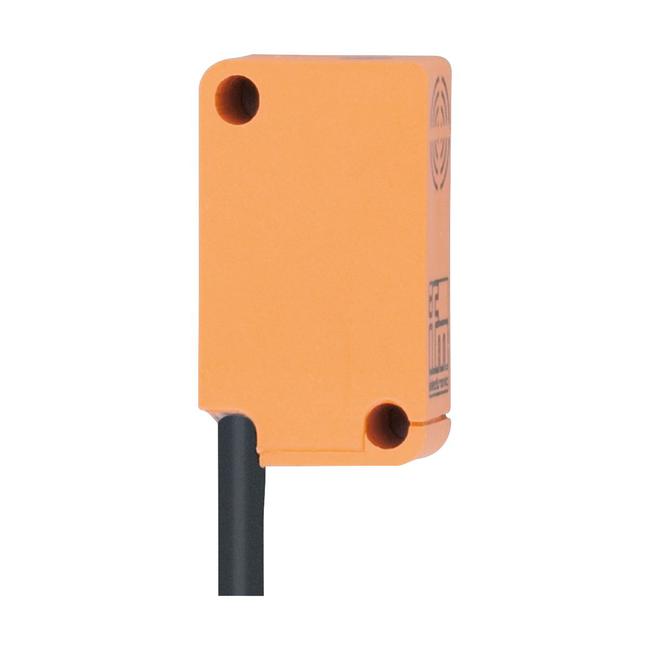

IS0004 ifm ⍾ IS-2002-BROA RT
Induktiver Sensor; Frequenz AC [Hz] : 45...65; Betriebsspannung [V] : 20...140 AC / 10...140 DC; Schutzklasse : II; Verpolungsfest : nein; Ausgangsfunktion : Öffner; Max. Spannungsabfall Schaltausgang DC [V] : 7; Max. Spannungsabfall Schaltausgang AC [V] : 7; Mindestlaststrom [mA] : 5; Max. Reststrom [mA] : 0,8; Dauerhafte Strombelastbarkeit des Schaltausgangs AC [mA] : 200; Dauerhafte Strombelastbarkeit des Schaltausgangs DC [mA] : 200; Kurzzeitige Strombelastbarkeit des Schaltausgangs [mA] : 900; (20 ms / 0,5 Hz); Schaltfrequenz AC [Hz] : 25; Schaltfrequenz DC [Hz] : 25; Kurzschlussfest : nein; Überlastfest : nein; Schaltabstand [mm] : 2; Realschaltabstand Sr [mm] : 2 ± 10 %; Arbeitsabstand [mm] : 0...1,6; Korrekturfaktor : Stahl: 1 / Edelstahl: 0,7 / Messing: 0,4 / Aluminium: 0,3 / Kupfer: 0,2; Hysterese [% von Sr] : 1...15; Schaltpunktdrift [% von Sr] : -10...10; Umgebungstemperatur [°C] : -25...80; Gehäuse : Quaderförmig; Einbauart : bündig einbaubar; Werkstoffe : PBT; Anzugsdrehmoment [Nm] : < 0,5; (mit Unterlegscheibe)
- Connection
- Kabel: 2 m, PUR; 2 x 0,14 mm²
- No. of inputs/outputs
- Anzahl der analogen Ausgänge: 1
- Current consumption
- < 15 mA
- Voltage supply
- 24 V
- Display
- Schaltzustand: 1 x LED, rot
- Degree of protection
- IP 67
- Nettogewicht
- 42 g
- Produktabmessungen
- 28 x 10 x 16 mm
