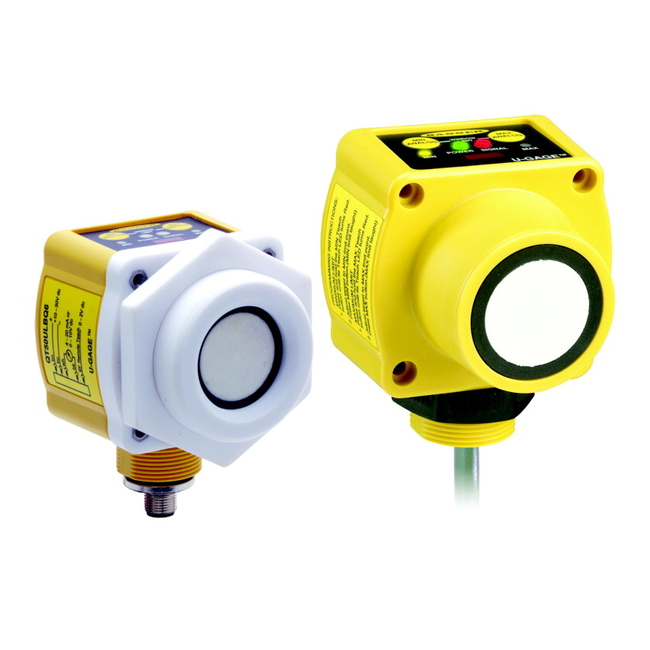

QT50UVR3W BANNER ⍾ 72477

Chemisch beständiger Ultraschallsensor mit 8 m Reichweite der Bauform QT50U; QT50U Universal Voltage Series: Proximity Mode Range: 200 mm to 8m; Input: 85-264 V ac 50/60 Hz/48 to 250 V dc Output: SPDT electromechanical relay 2 m (6.5 ft) Cable; Max Measurement Range : >1 m - <=20 m; Sensing Beam : Ultrasonic; Power : AC/DC Universal; Sensing Mode (Detailed) : Time of Flight; Housing Style : Rectangular; Device Type : Sensor; Primary Housing Material : PBT; Input/Output : E/M Relay; Indicator : LED(s); Connection : Flying Leads; Quick Disconnect Type : No QD; Analog Resolution/Discrete Repeatability : 1; Max Sensing Distance (mm) : 8000; Power Supply : 85-264 V ac / 48-250 V dc; Delay at Power-up (ms) : 1500; Adjustments : Push Button (s); Temperature Effect (mm/°C) : Uncompensated: 0.2% of distance/°C; Compensated: 0.02% of distance/°C; Vibration : MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).; Mechanical Shock : IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave; Max Discrete (Switched) Output (mA) : 8000; Discrete (Switched) Outputs : SPDT e/m Relay; Output Protection : Protected against short circuit conditions; IP Rating : IP67; NEMA Rating : NEMA 6P; Storage Temperature (°C) : -40 to 90; Max Operating Temperature (°C) : 70; Min Operating Temperature (°C) : -20; Max Op. Relative Humidity Non-Condensing (%) : 100; Warm-up Time (minutes) : 30; Temperature Warm-up Drift upon Power-up : < 7% of the sensing distance upon power-up.; Temp. Warm-up Drift (Notes 1) : After 5 min, the apparent switchpoint is < 0.6% of the actual position.; Temp. Warm-up Drift (Notes 2) : After 25 min, the sensing position will be stable.; Minimum Response Time (ms) : 100; Rep Rate (ms) : 96; Ultrasonic Frequency (kHz) : 75; Power/Current Consumption (exclusive of load) : 1.5 W max; Supply Protection Circuitry : Protected against reverse polarity and transient overvoltages; Feature: Remote Teach : Yes; Feature: Clear Object Detection : Yes; Application: Ultrasonic : Yes

Connection: Flying Leads
Sensing beam: Ultrasonic
Typical response time: 1500 ms
Power supply type: AC/DC Universal
Indicator: LED(s)
Degree of protection: IP67
