QS18VP6CV45QPMA BANNER ⍾ 75195
Dieses Produkt wurde als eingestellt eingestellt. Bitte fragen Sie nach Verfügbarkeit oder Ersatz.

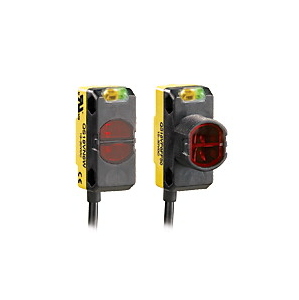

Optoelektronischer Allzwecksensor der Bauform QS18; WORLD-BEAM QS18 Series: Convergent Focal Point: 43 mm; Input: 10-30V dc Output: PNP 150mm Pigtail Euro Quick-Disconnect Connector; Sensing Beam : Visible Red LED; Power : DC; Sensing Mode (General) : Proximity; Housing Style : Rectangular w/M18 Mount; Primary Housing Material : ABS; Input/Output : Discrete; Power Supply/Supply Voltage : 10-30 V dc; Connection : Pigtail PUR QD; Quick Disconnect Type : M12 (Euro); Operation : Light/Dark Operate; Min Op. Temp. (°C) : -20; Max Op. Temp. (°C) : 70; Output response time (ms) : 0.6; Sensing Beam Wavelength : 630; Delay at Power-up (ms) : 100; IP Rating : IP67; NEMA Rating : NEMA 6; Max Op. Relative Humidity [%] : 95% @ 50°C; Lens Material : Acrylic; Adjustments : Potentiometer; Indicator : LEDs; Feature: Quick Disconnect : Yes
- Lens material
- Acrylic
- Sensing beam
- Visible Red LED
- Connection
- Pigtail PUR QD
- Typical response time
- 100 ms
- Power supply type
- DC
- Power supply
- 10-30 V dc
- Indicator
- LEDs
- Degree of protection
- IP67
