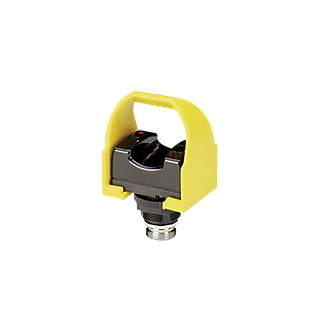

OTBA5 W/30 BANNER28631

Optische Taster: Bauform OTB; OTB Series: Momentary Action Touch Button w/Black F.C. Input: 120V ac; Upper Housing: Polysulfone Output: E/M Relay (SPDT) 9 m (30 ft) cable; Non-Illuminated : Yes; Cable Length (m) : 0.15; Power : AC; Power Source : AC; Sensing Mode (General) : Single Point Optical; Housing Style : Base Mount - Saddle; Primary Housing Material : Thermoplastic Polysulfone; Actuation : Yes; Activation Function : Optical; Mounting Thread : M30 x 1.5; Product Size (mm) : Other; Connection : Cable; Number of Input Pins/Conductors : 5; Operation : Normally Open/Normally Closed; Supply Voltage : 105-130 V ac; Output Type : SPDT e/m Relay; Input Type : AC; Max Input Response Time (ms) : 100; Max Output Response Time (ms) : 100; Physical Dimensions (LxWxH or DxH mm) : 59.9 x 43.2 x 48.0; Environmental Rating : IP66; NEMA Type and UL Type Rating : NEMA 1, 3, 4, 4X, 12, 13; Max Op. Relative Humidity Non-Condensing (%) : 90% @ 50°C; Max Op. Temperature (°C) : 50; Min Op. Temperature (°C) : -20; Secondary Material : Thermoplastic

Connection
Cable
Power supply type
AC
Produktabmessungen
59.9 x 43.2 x 48.0 mm
