7MF1565-3CA00-4AA3 SIEMENS ⍾ 7MF15653CA004AA3

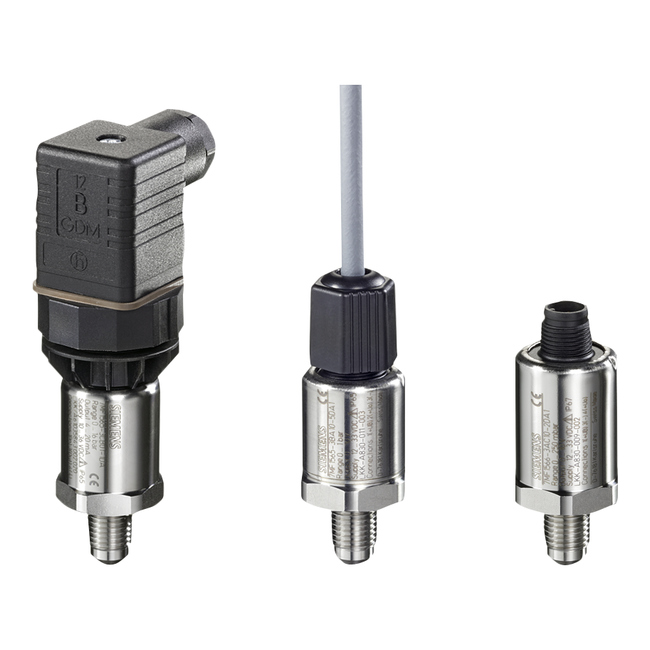

SITRANS P200 Transmitters for pressure and absolute pressure for general applications Non-linearity: 0,25 percent (typically) wetted parts material:ceramics, stainless steel plus sealing material; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: Cable quick connector PG9 (not with explosion protection) Process connection: G1/2" male to EN 837-1 (1/2" BSP male) (standard for metric pressure ranges mbar, bar) Sealing material between sensor and housing: Viton (FPM, Standard) Special version "Made for Alfa Laval Aalborg A/S, Denmark". and Aalborg - Logo included
SIEMENS 7MF1565-3CA00-4AA3 Datasheet PDF (en) Size: 153 KB |
Download |
