Make :
Siemens
MPN :
3WL1225-2CB35-4GA7
Product ID :
3WL12252CB354GA7

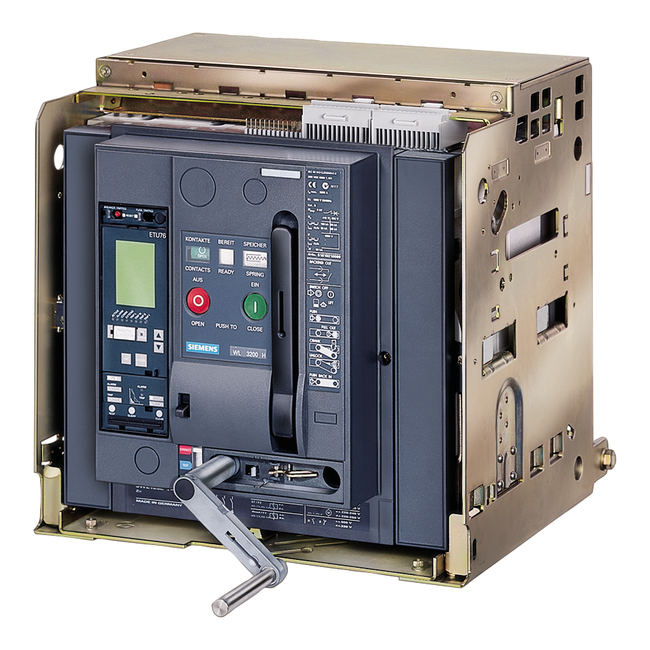

Draw-out circuit breaker Without guide frame 3-pole, Size 2, IEC In=2500 A to 690 V, 50/60 Hz AC Icu=66 kA at 500 V Rear horizontal connection Overcurrent release ETU 25 LSI protection adjustable 0.4-1 in Motorized/manual operating mechanism with memory Drive motor AC 50/60 Hz 208-240 V or 220-250 V DC Activation AC 50/60 Hz 230 V, 220 V DC With 1st auxiliary release Shunt release "F", F1 50/60 Hz 230 V AC/220 V DC, 100% on-load factor without 2nd auxiliary release 6NO+2NC

< 3WL1225-2CB34-1GA2 | 3WL1225-2CB36-4AN2 >

Download

TypeDescription
application/pdf

SIEMENS 3WL1225-2CB35-4GA7 Datasheet PDF (en)
Size: 280 KB

Download
