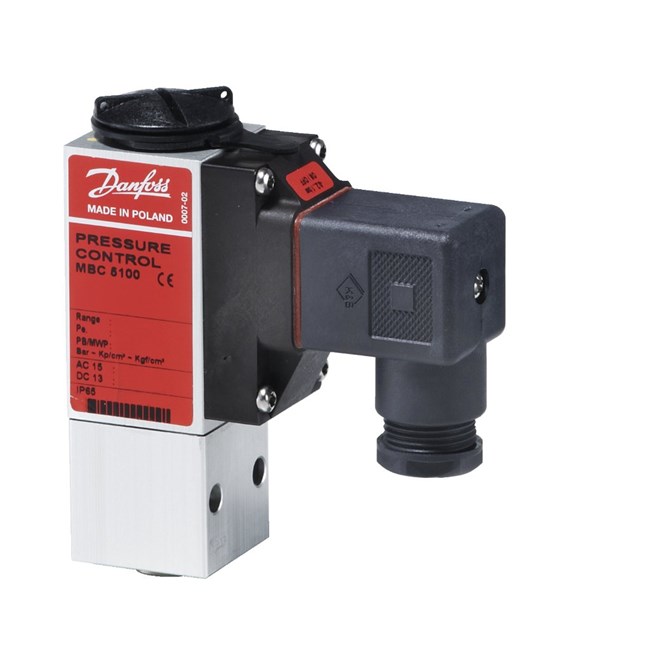

Danfoss 061B000266

061B000266 Danfoss

Type Code: MBC 5100; Weight: 0.250 Kg; Ambient temp.: -40 - 85 °C; Ambient temp.: -40 - 185 °F; Approval: ABS, BV, CCC, CCS, CE, DNV, EAC, GL, KRS, LR, LVD, NKK, RINA, RMRS, RoHS, RoHS China, TYSK; Burst pressure: 30,0 bar; Contact function: SPDT; Contact rating: AC15=0.5 A, 250 V; Contact rating: DC13=12 W, 125 V; Diff. max. range setting: 0,60 bar; Diff. min. range setting: 0,40 bar; EAN no.: 5702423218486; Electr. conn. Male/Female: Female; Electr. conn.: DIN-plug; Electr. conn.: EN 175301-803-A Pg 11; Electr. spec. standard: EN 60947-5; Enclosure rating: IP65; Max. test pressure: 15,0 bar; Max. test pressure: 218,0 psig; Max. Working Pressure: 15,0 bar; Max. Working Pressure: 220 psig; Pack format: Multi pack; Pressure conn. notes: With flange; Pressure conn. std.: ISO 228-1; Pressure conn. type: G - 1/4 Female; Pressure sensing elem.: Bellows; Product accessories: Switches accessories; Prod. description: Pressure switch; Prod. group: Switches and thermostats; Prod. name: Pressure switch; Pack qty.: 32 PC; Regul. range: -0,20 - 10,00 bar; Regul. range: -0,02 - 1,00 MPa; Serviceable: No; Spec. key: 1411-1DB04.
